Company profile
Chengdu Mczoer Medical Technology Co., Ltd., a subsidiary of Nanos Medical Technology (Shanghai) Co., Ltd., is devoted to the integrated solution of plasma minimally invasive technology and supporting products for urological and gynecological applications. Low-temperature plasma surgery is widely used in urology and gynecology, forming minimally invasive surgical solutions in combination with endoscopes, which has been recognized in minimally invasive electrosurgery and has more obvious development potential. Strong technical reserves and broad market demand for urology and gynecology applications have boosted the rapid development of the Company. At present, the Company is committed to the R&D and innovation of endoscopes and plasma energy platforms for urology and gynecology. In the product promotion and sales activities, the company team has accumulated a large number of clinical application data and market channels; technically, the Company cooperates with domestic and foreign advanced endoscopic technology enterprises to strive to break through the key technical bottlenecks and reach the domestic advanced level. The company team has the desire and confidence to provide users with safer, more effective and more convenient products through the establishment of R&D and manufacturing. The Company has gathered the elite in management, sales and R&D in the industry, established various clinical technology promotion bases in cooperation with mainstream Level A Tertiary Hospitals, and held several academic activities under the guidance of well-known domestic experts in various forms, creating good social and economic values. Innovation is the source power of enterprises. The Company will also successively launch more supporting products on the basis of core products. Facing with the future, the Company is making full efforts, riding the wave, and striding forward to the goal with new strategies, quality products and services.
Contact us
Tel
028-82628106
400 service call
400-6616-299
Address
No.8-1-301 and No.8-2-301, SME Incubation Park, No.319, Qingpi Avenue, Chengdu Cross-Strait Science and Technology Industrial Development Park, Wenjiang District, Chengdu
Urology
Gynecology
Low-temperature square wave   Care for cavities
RF Plasma Surgery System
RP-8010
Low-temperature square wave   Care for cavities

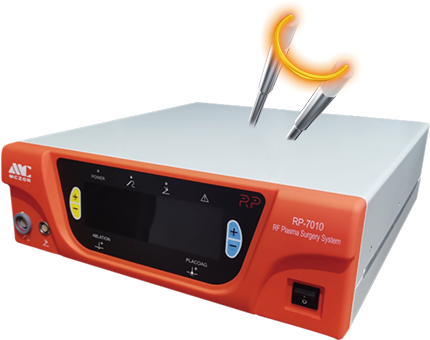

RF Plasma Surgery System
RP-7010

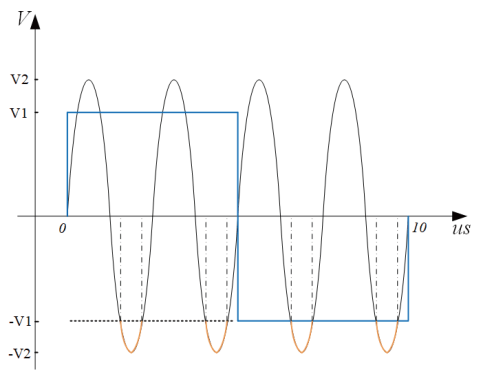

The Advantage of plasma knife in gynecological surgerylow-temperature square wave
Indications
Quick excitation
· Square wave voltage rise fast
· Low dependence on impedance
· Suitable for fine and thin cuts
Fewer bubbles
· Unique frequency
· Low excitation temperature
· Clear surgical field
Low thermal damage
· Stable voltage and low power consumption
· Fast postoperative recovery
· Protect inner membrane
Plasma bipolar electrode
The bipolar electrode is the electrode with two electrodes at the same time; one is the working pole and the other is the loop pole. The two are separated by the ceramic body. The working pole is located at the front end of the electrode, and the loop pole is located at the back end of the ceramic body, forming a simplified local loop. Using the electric field energy generated by bipolar radiofrequency, the electrolyte (normal saline) between the working pole and the tissue is excited to form a dynamic plasma vapor sheath, which acts on tissue cutting, ablation, and hemostasis, and the orange area around the cutting ring is plasma during surgery.
· Low cutting temperature of 40℃ -70℃, with less damage to peripheral nerve, and the current is not transmitted through human body and endoscopic sheath
· Adjust the hemostatic strength according to the surgical needs, with less intraoperative less, no eschar, and rapid wound recovery
· Adopt rare precious metal materials to improve cutting efficiency and prolong the life of blades
· Thin ring make the cutting more efficient
· Integrated cable design to prevent cross contamination
Bipolar forceps   supersonic knife
(Great vessel closure)
Cutting electrode/bipolar cutting
8.5mm opening forceps, suitable for closing 7mm great vessels, teeth with certain angle design to ensure grasping
Ring electrode (fine)
Cutting and coagulation
Ring electrode (thick)
Cutting and coagulation
Hook electrode
Separation
Bipolar coagulation electrode
Cutting and coagulation
Spade electrode
Cutting and coagulation
Rolling electrode
Coagulation
No "gland" involved   Excellent Mczoer
RF Plasma Surgery System
RP-7010
Low-temperature square wave   Care for cavities
RF Plasma Surgery System
RP-8010
Quick excitation
· Square wave voltage rise fast
· Low dependence on impedance
· Suitable for fine and thin cuts
· Decreased obturator nerve reflex
Fewer bubbles
· Unique frequency
· Low excitation temperature
· Clear surgical field
Low thermal damage
· Stable voltage and low power consumption
· Long effective working hours
· Fast postoperative recovery
· Protect inner membrane
Some high-risk prostate cancer patients can also be operated
(Strict preoperative examination and surgical indications)
· Patients with oversized prostate
· Patients with mild renal insufficiency
· Elderly patients with benign prostatic hyperplasia
· Patients with mild cardiac and pulmonary insufficiency
· Diabetic patients
· Hypertensive patients
Plasma bipolar electrode
· 40-70℃ low temperature cutting with little damage to the surrounding tissues
· Coarse rings are stiffer and thin rings are more efficient
· Adjust hemostatic strength according to surgical needs
· Low temperature cutting, safer and more efficient
· Rare precious metal materials greatly improve electrode quality
· Integrated cable design to prevent cross infection
Ring electrode (fine)
Cutting and coagulation
Ring electrode (thick)
Cutting and coagulation
Hook electrode
Separation
Bipolar coagulation electrode
Cutting and coagulation
Spade electrode
Cutting and coagulation
Rolling electrode
oagulation
